Unmatched Accuracy and Speed for Demanding Inspections:

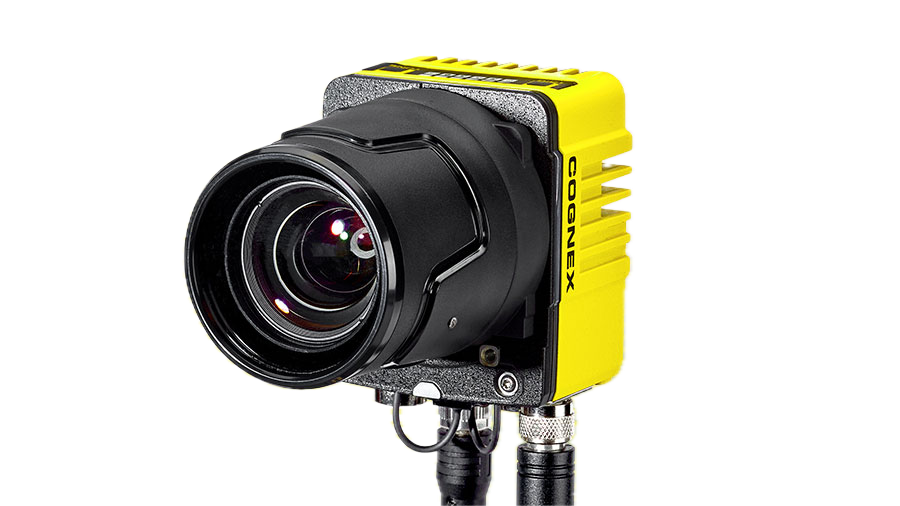

• High-Speed Processing: Capable of ultra-fast image acquisition and tool processing, they can keep up with the fastest production lines (e.g., In-Sight 3800 Line Scan with up to 169 kHz line rate). This ensures high throughput without compromising inspection quality.

• High-Resolution Imaging: They capture incredibly detailed images, with some models offering up to 64 MP (e.g., In-Sight 3800 Line Scan 4K mode) or 32 MP (In-Sight 9902L), allowing the detection of even the smallest features and defects.

• Image Overlap Technology (In-Sight 3800 Line Scan): This advanced feature captures overlapping sections for complete inspection coverage, further improving accuracy and reducing the risk of missed defects, even at high speeds.

Ideal for Specific Application Challenges:

• Continuous Web Inspection: Perfectly suited for inspecting continuous materials like paper, textiles, films, and metal sheets for coating voids, tears, holes, or inconsistent patterns

• Cylindrical and Curved Surfaces: Excelling at “unwrapping” and inspecting the entire surface of cylindrical objects (e.g., automotive filters, batteries, cans) or labels on curved surfaces, which are difficult for area scan cameras.

• Large Parts and Complex Shapes: Builds images line-by-line as objects move, allowing for the inspection of oversized or irregularly shaped parts as a whole, eliminating the need for multiple area scan cameras and simplifying setup.

Integrated Smart Camera Functionality:

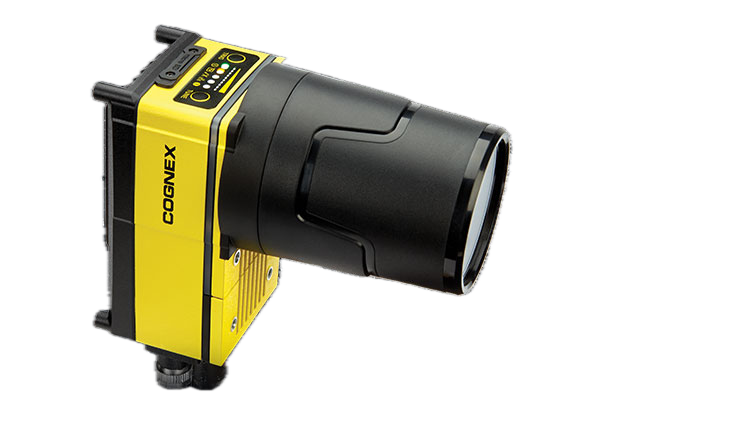

• Self-Contained Vision Systems: Many Cognex line scan cameras, like the In-Sight 3800 Line Scan and In-Sight 9902L, are “smart cameras.” This means they embed image acquisition, processing, and communication directly on the device, eliminating the need for a separate PC controller. This simplifies installation, reduces space requirements, and lowers overall system cost and complexity.



• Robust Industrial Design: They feature industrial-grade IP67-rated housing, protecting them from liquids and dust without needing an external enclosure, ensuring reliable operation in harsh factory environments.

  Powerful and Versatile Vision Tools:

• AI-Powered Edge Learning Tools: Leverage cutting-edge artificial intelligence for defect detection and classification. These tools are easy to use, often requiring example-based training without prior AI experience, enabling fast deployment of solutions for complex problems.



• Extensive Rule-Based Vision Tools: Alongside AI, they include Cognex’s industry-proven library of traditional vision tools (e.g., PatMax RedLine for pattern matching, Measure Distance, Pixel Count, Barcode Reading, OCR). This complete toolset allows manufacturers to tackle a wide range of tasks, from simple presence/absence checks to complex defect analysis.

Simplified Deployment and Integration:

• User-Friendly Software: Powered by Cognex’s In-Sight Vision Suite, they offer flexible programming environments (EasyBuilder for simplicity, Spreadsheet for advanced customization) that simplify setup and training.

• Flexible Communication: Support common industrial protocols (e.g., EtherNet/IP, PROFINET, Modbus TCP, OPC UA) for seamless integration with PLCs, robots, and factory networks.

• Encoder Support: Designed with encoder inputs to precisely synchronize image acquisition with object movement, ensuring distortion-free images.
